Qingdao Quanlong Metal Materials Co.,Ltd is a specialized manufacture for producing the Galvanized Steel Coils products for nearly 15 years , rich export experience for 12 years.

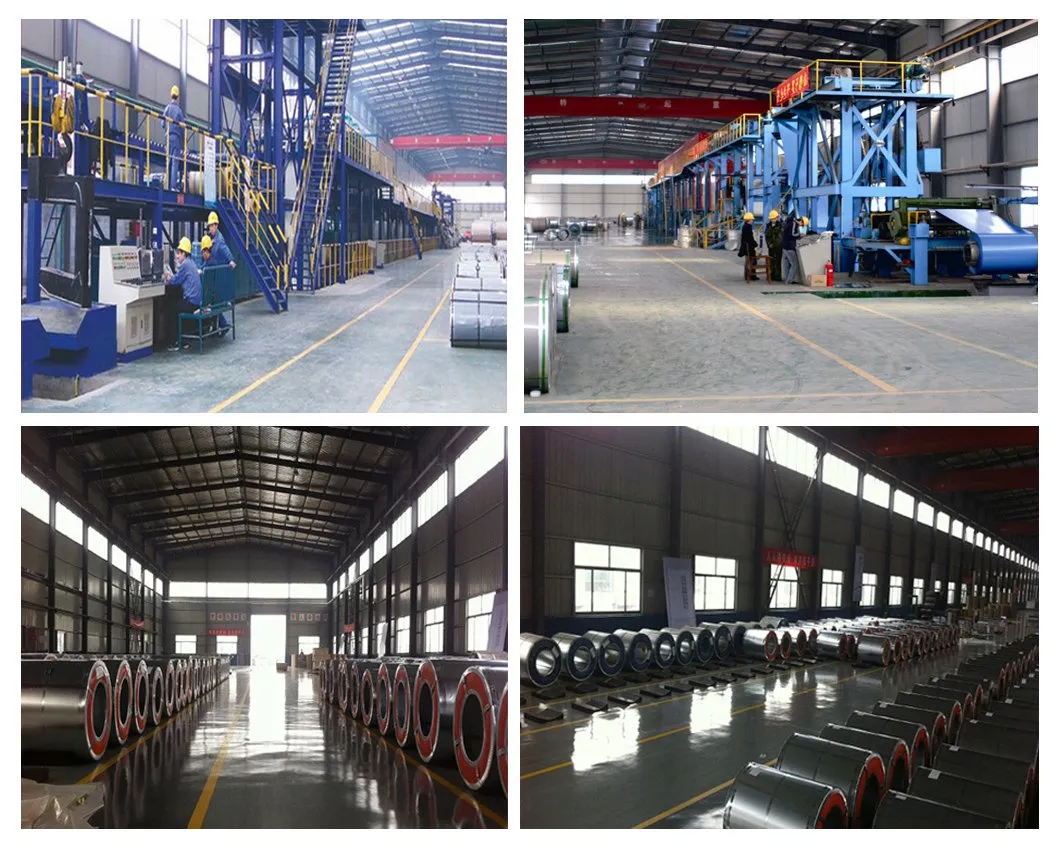

We have 3 galvanized steel production line and 2 galvalume steel production line, mainly produce big,small,zero,regular spangle and surface can be Chromed/Oiled/Slightly Oiled/ Dry/ Anti-Finger(different color).
.
| Name | Roofing Material China Factory Dx51d SGCC Hot Dipped Galvanized Zinc Coated GI Steel Coil Price |
| Grade | DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, DX57D+Z, DC51D+Z, SGCC, SGCD, S220GD+Z, S250GD+Z, S280GD+Z, S320GD+Z, S350GD+Z, S550GD+Z |
| Width | 600-1500mm |
| Thickness | 0.12-4mm |
| Zinc coating | 30-400g/m2 |
| Surface treatment | chromated / oiled/slightly oiled/ dry |
| Hardness | soft, full hard, half hard |
| Spangle | zero spangle / minimized spangle / regular spangle/ big spangle |
| ID coil | 508mm or 610mm |
| Coil weight | 2-8 MT per coil. According to the customer's requirements |
| Package: | Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet) |
| Application: | Industrial panels, roofing and siding for painting |
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
| Mechanical Properties | ||||||
| GRADE | Yield Strength MPa | Tensile Strength MPa | Elongation % | |||
| SGCC(DX51D+Z) | ≥205 | ≥270 | - | |||
| SGCD(DX53D+Z) | - | ≥270 | 38 | |||
| SGCE(DX54D+Z) | - | ≥270 | 40 | |||
| DX56D+Z | - | ≥270 | 42 | |||
